Description

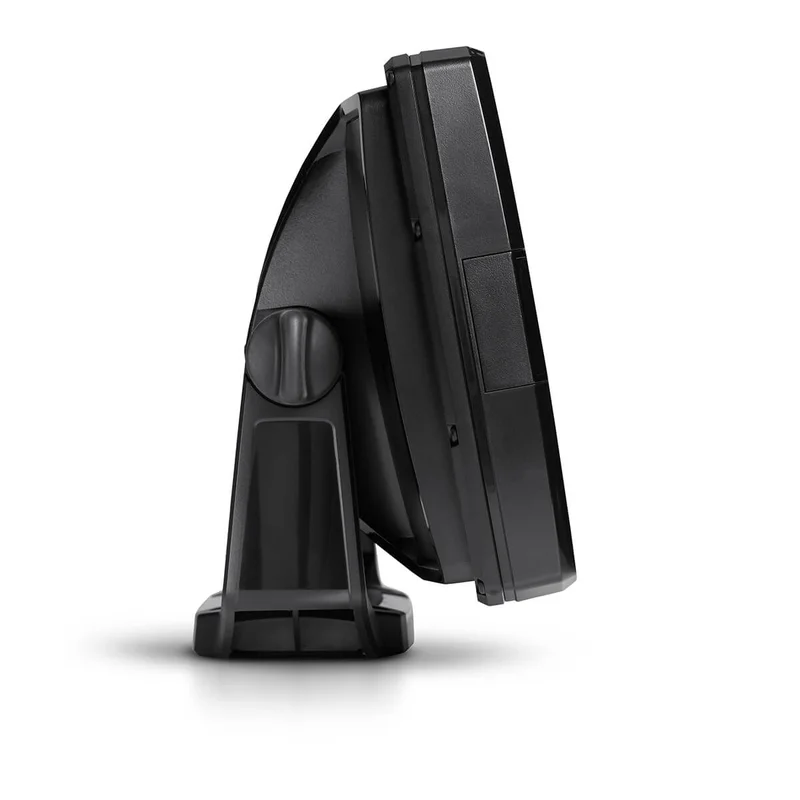

Humminbird HELIX 7 CHIRP MEGA DI GPS G4
– Series: HELIX
– Beeldscherm Size: Diagonaal 7 Inch
– Beeldscherm Pixel Matrix: 1024H x 600V
– Sonar-Standaard: Dual Spectrum CHIRP, MEGA Down Imaging
– Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
– Sonar-Optional: 53 kHz, 50/Low Airmar CHIRP
– CHIRP-Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
– Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
– Depth-Sonar: 1,200ft / 365m (standard transducer) en 3,500ft / 1067m (optional 50 kHz)
– CHIRP – Imaging-Frequencies Supported: 455 kHz (440-500 kHz), MEGA DI (1075-1150 kHz)
– Depth-Down Imaging: 400ft / 122m (455 kHz) en 75 ft / 23m (MEGA)
– Range-Side Imaging (Side-To-Side): 800ft / 244m (455 kHz)
– Interface: Keypad Control
– Features: Built In GPS, Built In Mapping, Dual Spectrum CHIRP, Down Imaging, MEGA Imaging
– Power Draw: 800mA
– Power Input: 10.8-20 VDC
– Power Output Peak-to-Peak: 4000 Watts
– Power Output RMS: 500 Watts
– Mount-Standard: Gimbal
– Mount-Standard Size: 10.54″ W x 5.8″ H x 3.68″ D
– Mount-Optional Size: 10.54″ W x 5.44″ H x 1.13″ D
– Transducer Mount Location: Transom
– GPS Chartplotting: Included
– GPS Trackplotting: Included
